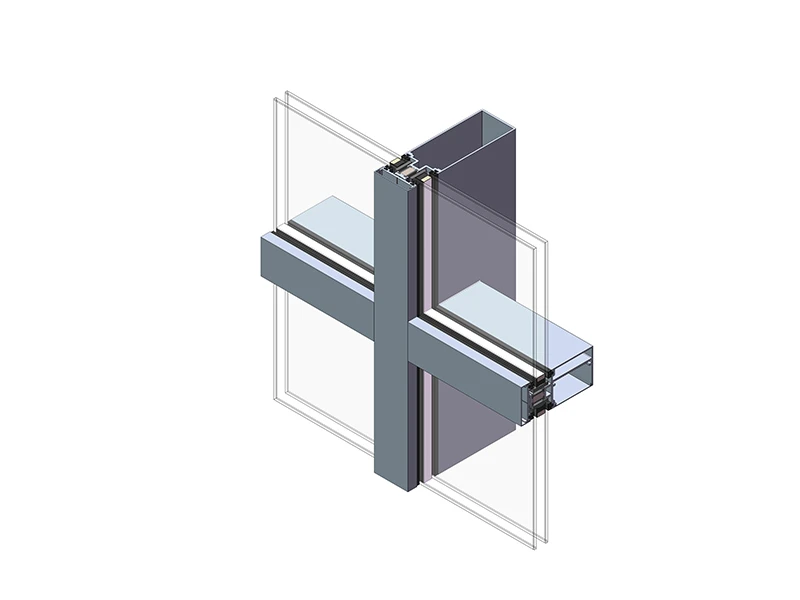

65 SERIES FULLY-EXPOSED FRAMING CURTAIN WALL

65 SERIES FULLY-EXPOSED FRAMING CURTAIN WALL

PRODUCT SPECIFICATION

PROFILE WIDTH: 65mm

MULLION DEPTH: 115, 125, 150, 180mm

TRANSOM DEPTH: 65, 70, 80mm

THERMAL BREAK WIDTH: 14.8-35.3mm

GLASS THICKNESS: 24-42mm

WIND RESISTANCE: 5.0kPa

AIR TIGHTNESS: 0.6m3/(m∙h)

WATER TIGHTNESS: 700Pa

THERMAL INSULATION: 1.3-2.4W/(m2∙K)

SOUND INSULATION: 38dB

ALUMINIUM EXTRUSION: 6063 T5

STANDARD: GB, AS, AAMA/ASTM, BS



ADVANTAGES

  • Excellent thermal insulation
  • Thermal break filled with polyurethane foam
  • Glass surrounded with PE foam strips
  • Excellent water tightness
  • Sealing gasket is inserted throughout the entire profile
  • High strength
  • Multiple depth choices of mullions
Inquire Now+ Next Products+
Solutions

Acoustic Insulation Solutions Acoustic Insulation Solutions
Extreme Climate Door/Window Solutions Extreme Climate Door/Window Solutions
Security & Impact-Resistant Solutions Security & Impact-Resistant Solutions

Tell Us More About Your Project

TKD engineers will collaborate with your team to create a complete system solution to your design intent with a corresponding budget. Contact us today.

Send Us A Message

Let’s make it happen.

Related Products

70 SERIES FULLY-EXPOSED FRAMING CURTAIN WAL 70 SERIES FULLY-EXPOSED FRAMING CURTAIN WAL
80 SERIES FULLY-EXPOSED FRAMING CURTAIN WALL 80 SERIES FULLY-EXPOSED FRAMING CURTAIN WALL

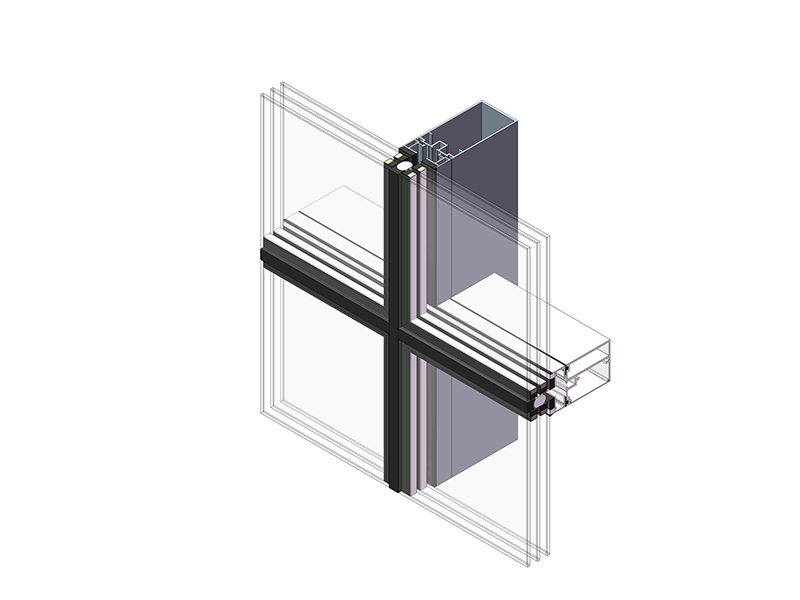

65 SERIES FULLY-CONCEALED FRAMING CURTAIN WALL 65 SERIES FULLY-CONCEALED FRAMING CURTAIN WALL
