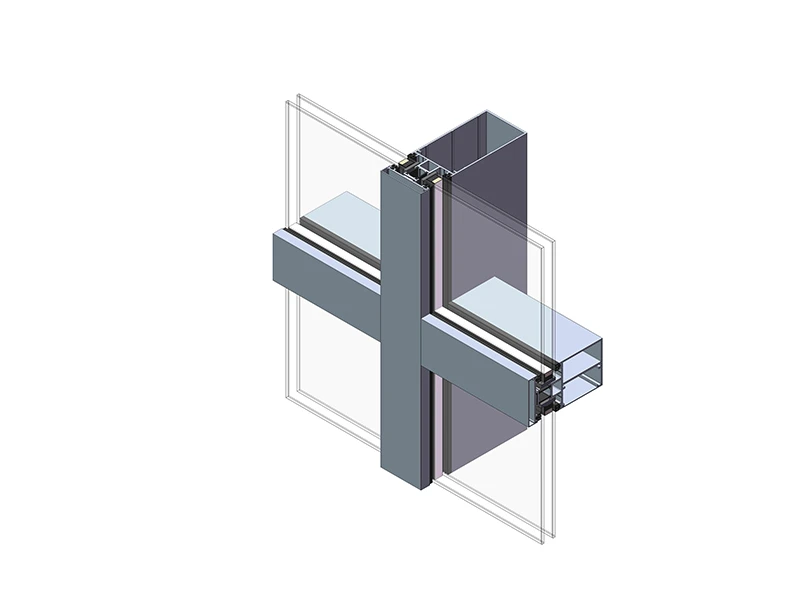

80 SERIES FULLY-EXPOSED FRAMING CURTAIN WALL

PRODUCT SPECIFICATION

PROFILE WIDTH: 80mm

MULLION DEPTH: 130, 150, 180mm

TRANSOM DEPTH: 75, 85mm

THERMAL BREAK WIDTH: 14.8-35.3mm

GLASS THICKNESS: 24-42mm

WIND RESISTANCE: 5.0kPa

AIR TIGHTNESS: 0.3m³/(m∙h)

WATER TIGHTNESS: 700Pa

THERMAL INSULATION: 1.2-2.1W/(m²∙K)

SOUND INSULATION: 38dB

ALUMINIUM EXTRUSION: 6063 T5

STANDARD: GB, AS, AAMA/ASTM, BS

ADVANTAGES

Excellent thermal insulation

Thermal break filled with polyurethane foam

Glass surrounded with PE foam strips

Excellent water tightness

Sealing gasket is inserted throughout the entire profile

High strength

Multiple depth choices of mullions
