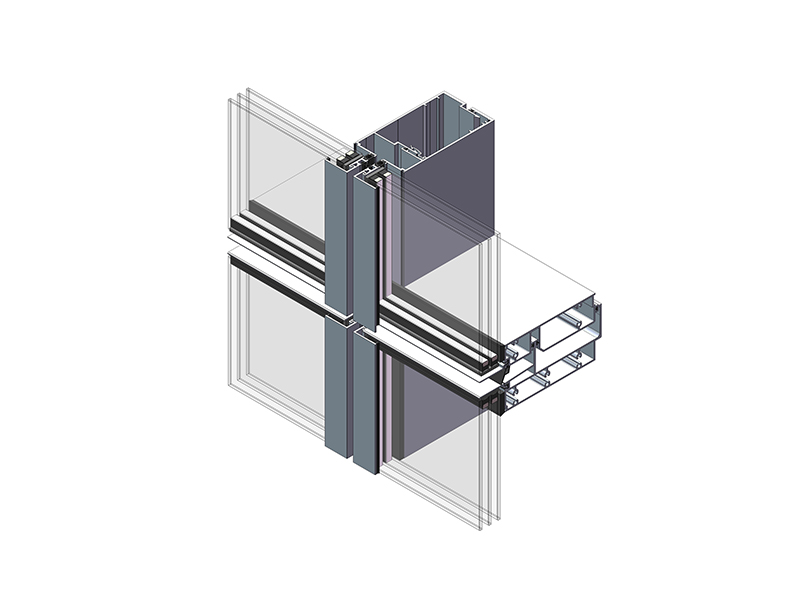

CLOSED-CAVITY UNITIZED CURTAIN WALL

PRODUCT SPECIFICATION

PROFILE WIDTH: 100mm

MULLION DEPTH: 150, 180mm

THERMAL BREAK WIDTH: 14.8-24mm

GLASS THICKNESS: 24-50mm

WIND RESISTANCE: 5.0kPa

AIR TIGHTNESS: 0.6m³/(m∙h)

WATER TIGHTNESS: 500Pa

THERMAL INSULATION: 1.5-2.5W/(m²∙K)

SOUND INSULATION: 36dB

ALUMINIUM EXTRUSION: 6063 T5

STANDARD: GB, AS, AAMA/ASTM, BS

ADVANTAGES

Excellent thermal insulation

Glass surrounded with PE foam strips

Excellent water tightness

Rain screen principle

High strength and good seismic resistance
