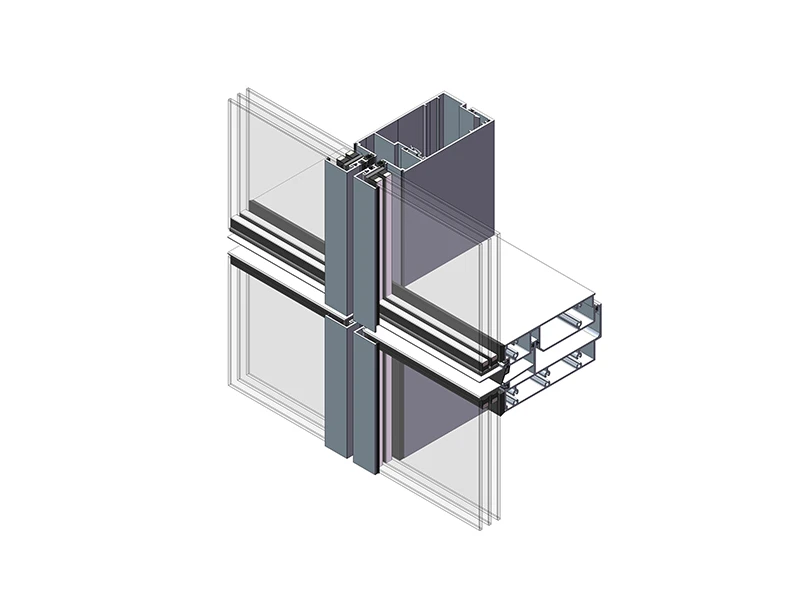

OPEN-CAVITY UNITIZED CURTAIN WALL
PRODUCT SPECIFICATION
PROFILE WIDTH: 100mm
MULLION DEPTH: 150, 180mm
THERMAL BREAK WIDTH: 14.8-35.3mm
GLASS THICKNESS: 24-50mm
WIND RESISTANCE: 5.0kPa
AIR TIGHTNESS: 0.4m3/(m∙h)
WATER TIGHTNESS: 800Pa
THERMAL INSULATION: 1.2-2.2W/(m2∙K)
SOUND INSULATION: 38dB
ALUMINIUM EXTRUSION: 6063 T5
STANDARD: GB, AS, AAMA/ASTM, BS
ADVANTAGES
Excellent thermal insulation
Multiple width choices of thermal break
Excellent water tightness
Rain screen principle
High strength and good seismic resistance
