METAL PANEL CURTAIN WALL

PRODUCT SPECIFICATION

METAL TYPE: ALUMINIUM PANEL, ALUMINIUM COMPOSITE PANEL, ALUMINIUM HONEYCOMB PANEL, etc.

VERTICAL MULLION: STEEL RHS

HORIZONTAL FRAME: STEEL ANGLE OR STEEL SQUARE TUBE

THERMAL ROCKWOOL THICKNESS: 50-150mm

WIND RESISTANCE: 5.0kPa

AIR TIGHTNESS: 0.6m³/(m∙h)

WATER TIGHTNESS: 500Pa

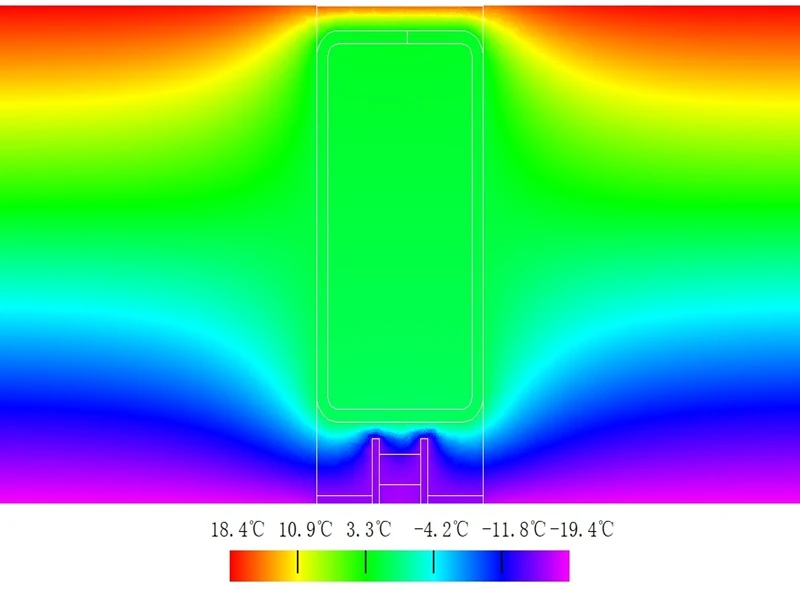

THERMAL INSULATION: 0.5-1.0W/(m²∙K)

SOUND INSULATION: 38dB

STANDARD: GB, AS, AAMA/ASTM, BS

ADVANTAGES

Excellent thermal insulation

Thermal rockwool (50-150mm thick) can be fixed to the back of metal panels as per project requirement.

Excellent water tightness. Decorative strips or sealant can be used to seal the gaps between panels.

Good decorative appeal and strong plasticity
